Motorised Swing Skylights

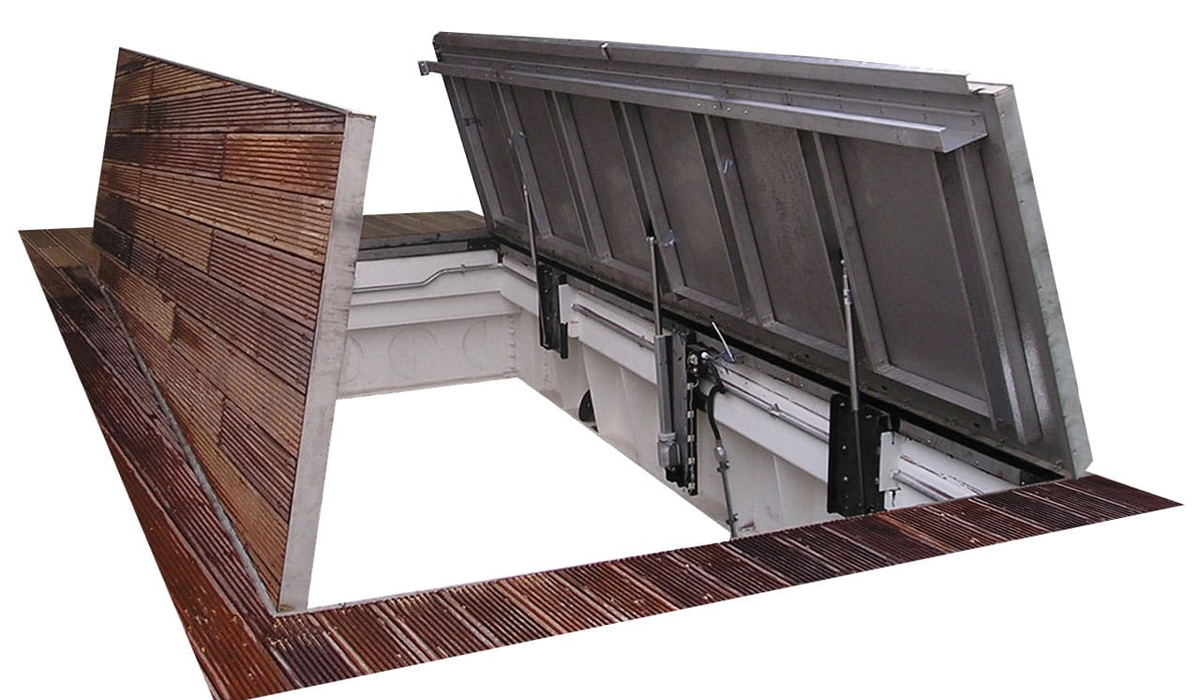

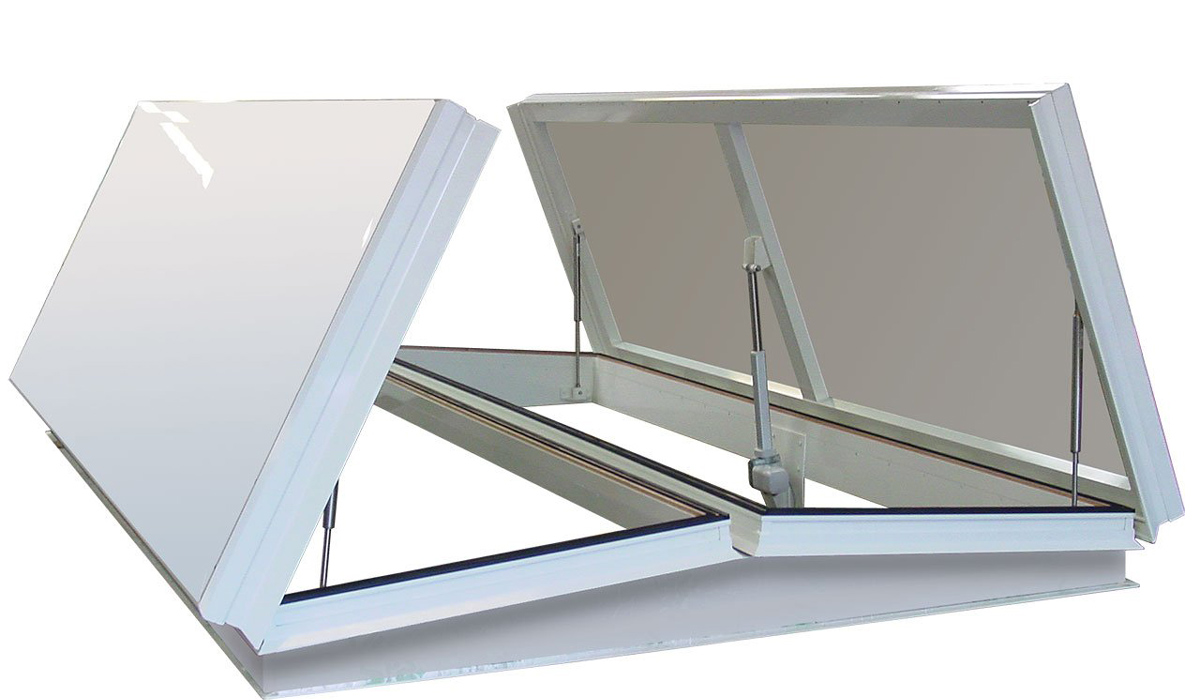

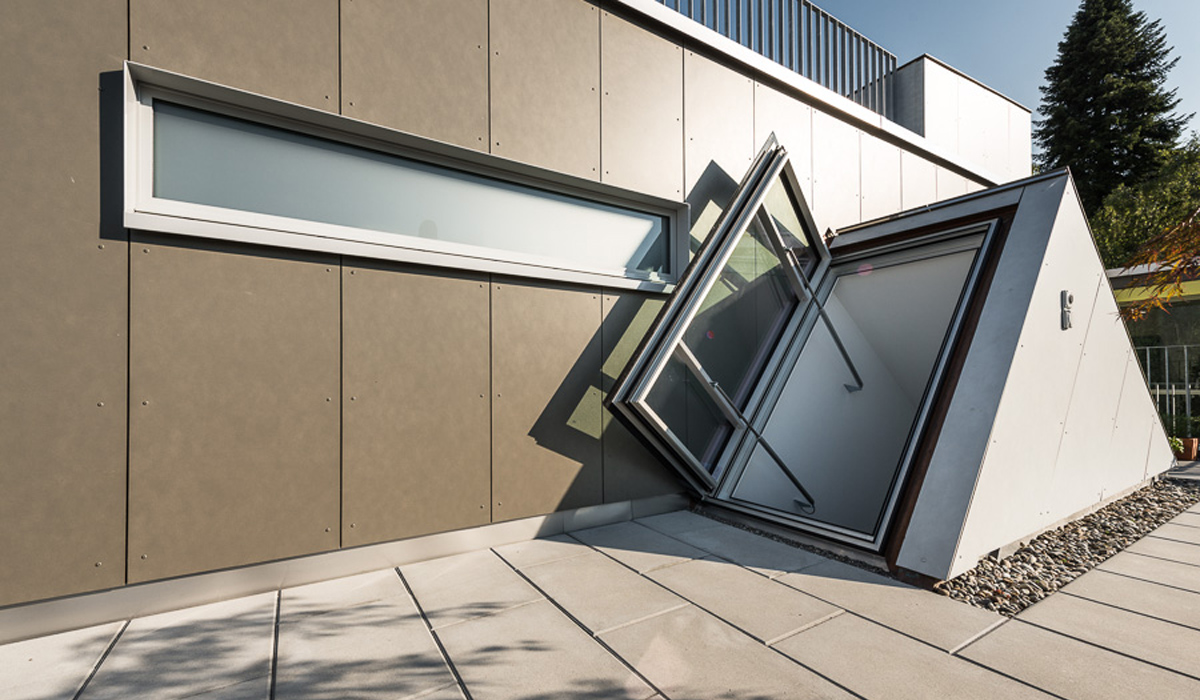

Skylight with Compass and Complete top Swing Opening

Swing skylight offered by C4G, with compass opening and complete top swing feature, is a combination of design and high performance, suitable for those looking for maximum functionality. C4G Automation can provide the solution to create bright, sunny interiors even if you have a flat ceiling under a sloping roof. The simple construction of a shaft is all that’s needed to capture light and bring fresh air into the home. A skylight shaft is a light well from which the incoming light from the skylight is distributed into the room. If the shaft is ‘flared’ it is possible to make both the skylight and the shaft appear larger, and it ensures the light is more evenly distributed once it enters the room. Just imagine how opening the ceiling to the sky will visually expand a room with sunlight from above, cool breezes and the spacious open feeling of being in touch with the outdoors.

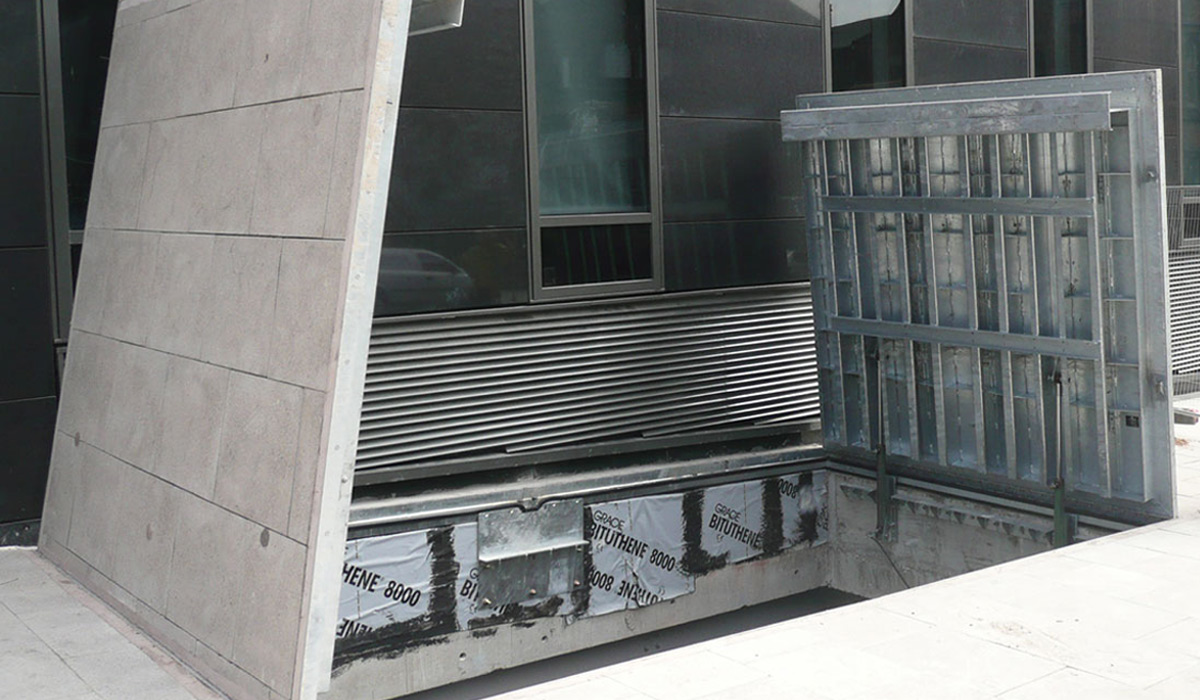

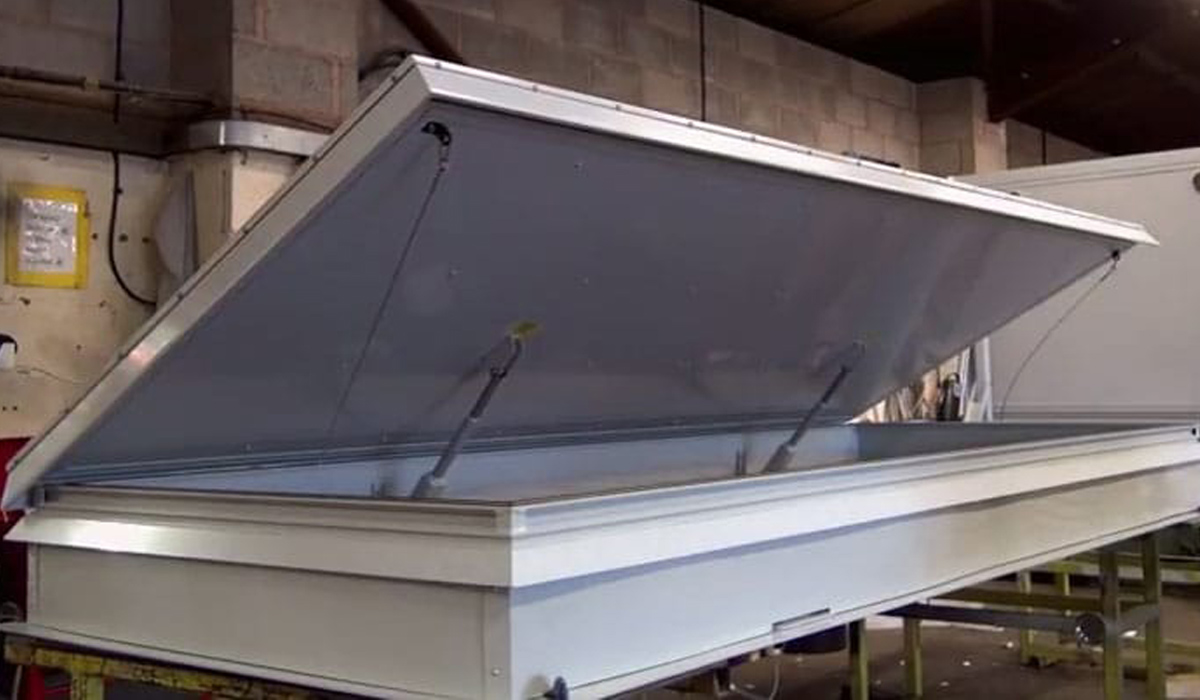

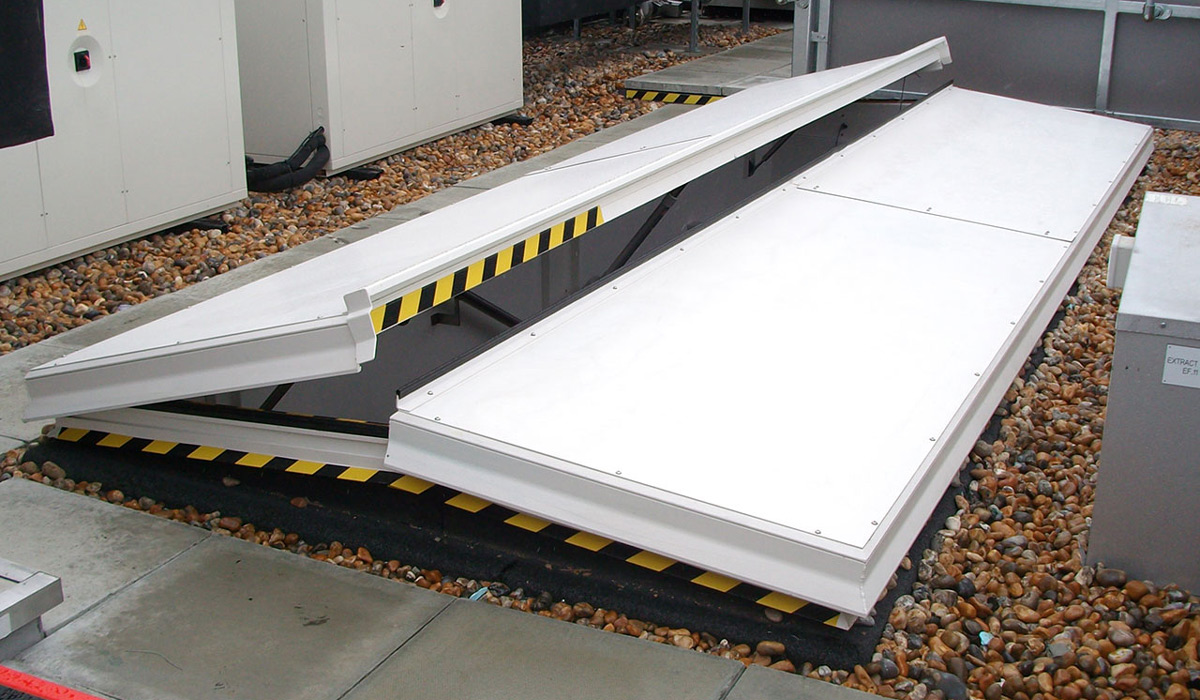

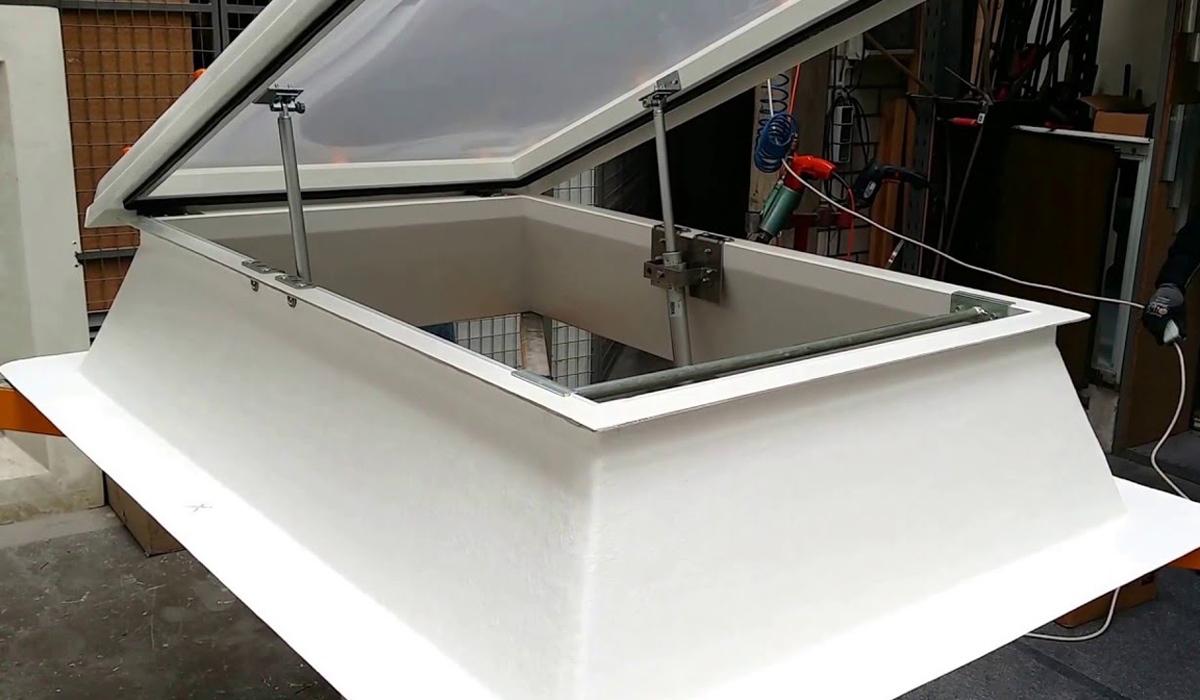

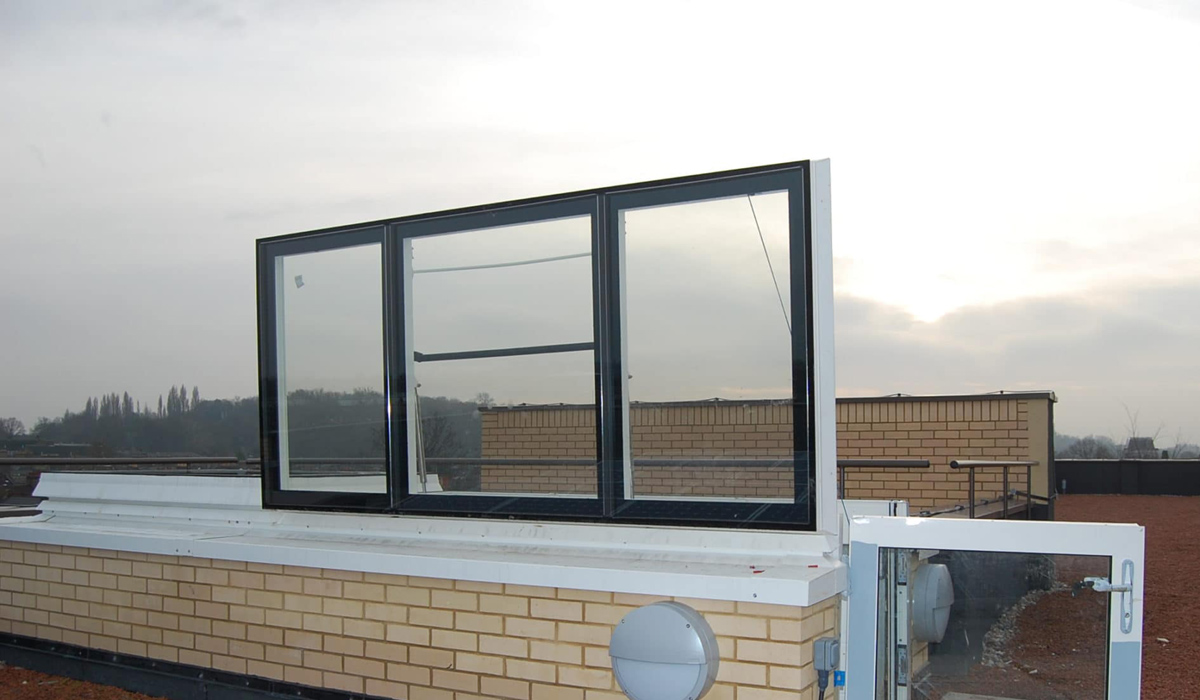

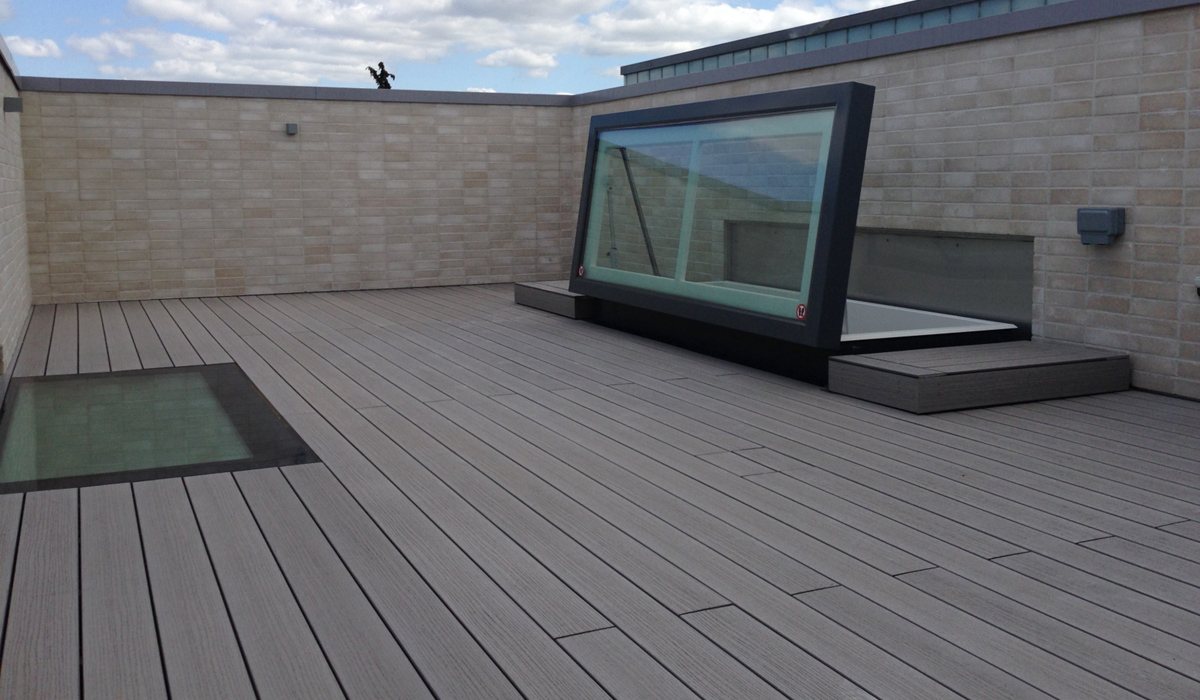

Swing Operable Skylights

This type of skylight has different applications and specific functions, one being ventilation. A typical ridge vent or standard operable skylight only opens a few degrees, allowing small amounts of ventilation. The vertical unit fully opens, allowing optimum amounts of ventilation into a space. Daylight is a desired effect of all skylights, and the swing series allows ample levels of daylight.

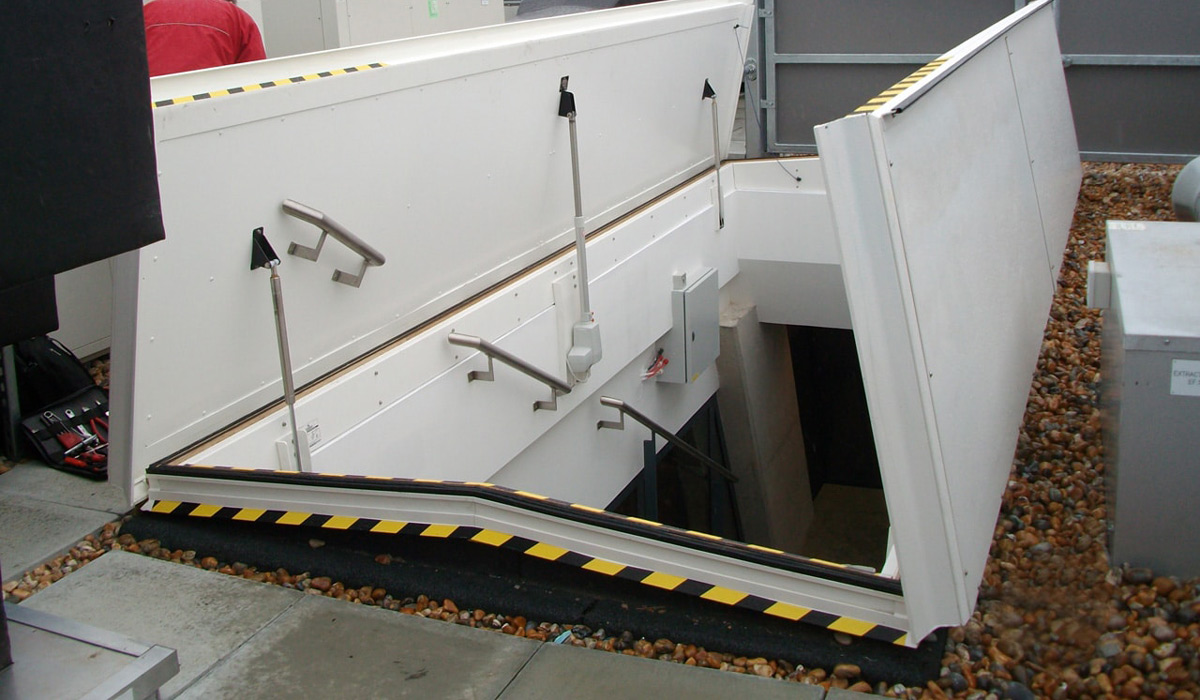

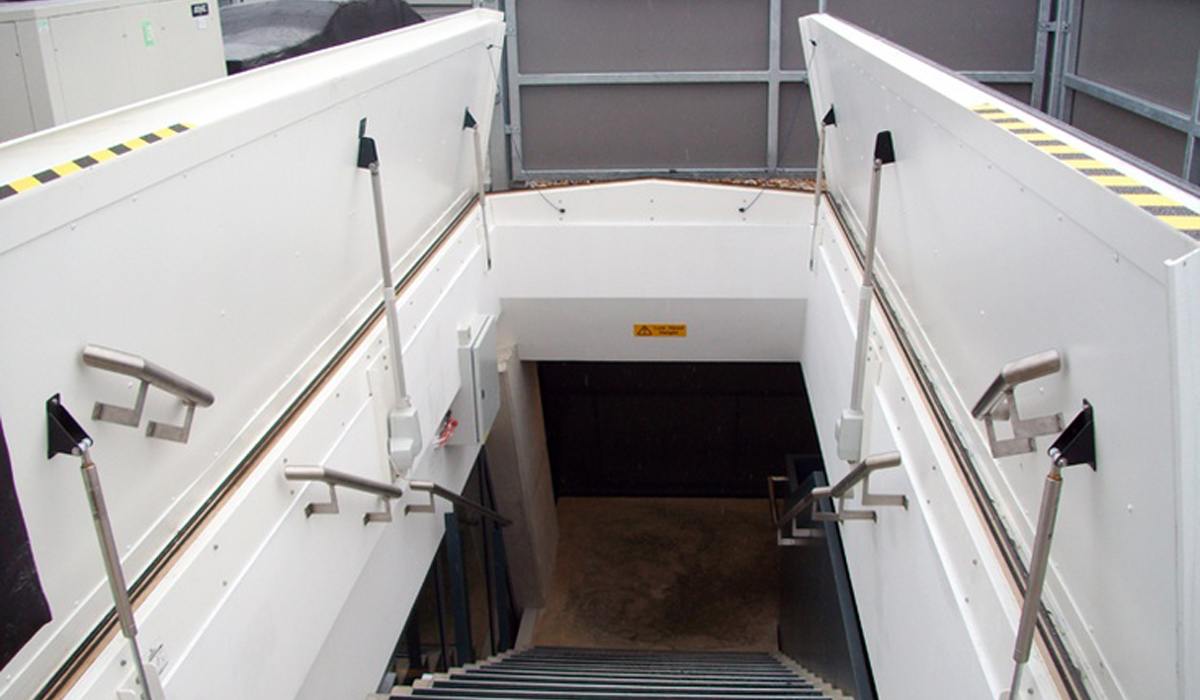

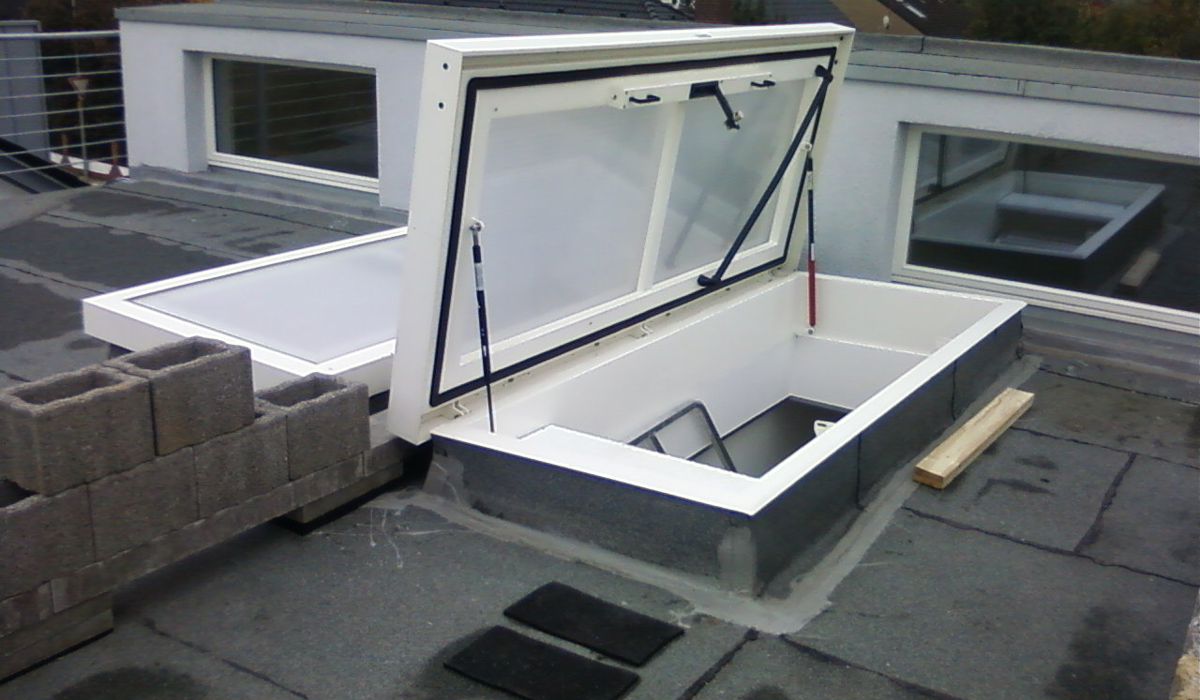

Swing Skylights Easy Access

At times, large equipment may need to be moved into a room, but the building doors may not be large enough. Swing skylights provide an unobstructed opening, allowing equipment to pass into the interior of the building. C4G Automation swing operable skylight can also be used for roof access. Depending on the building’s design, reaching the roof may be challenging, a swing skylight creates an easy exit to any building’s roof. This type of skylight also provides unobstructed views of the night sky for those who enjoy star gazing.

Motorised Skylights Customization

All Swing operable skylights built by C4G Automation are constructed out of low maintenance aluminum framework that will not rot, rust, warp, or require yearly finish work. Aluminum & Stainless steel is an ideal material to withstand years of exposure to the elements. Virtually any type of glazing can be incorporated into the framing system, including laminated glass. The vertical degree skylight is custom built. This means the skylight is built to your specific sizes. The design of the skylight is also built to your desired slope and number of units.

MOTORISED SKY LIGHTS

  • Rain Protection

  • Ventilation

  • Control light and shade

  • Control solar heat

  • Can withstand strong wind loads

  • Increased privacy – no uninvited visitors

  • Wide range of electromechanical operators for sky lights upto 3000kg weight

  • Control to stop anytime while gate is moving

  • Works on Precise machine cut toothed pinion along with galvanized rack & chain with wire rope arrangement

  • These automatic sky lights are widely used and Economical option among all the types of sky lights

  • Sliding motorised roof system consisting of 3 or 4 glazing panels; the roof can be opened to two thirds or three quarters of its total width as the topmost panel is fixed and cannot be moved

  • Our sky lights are available in single side or double side sliding suggested to suit actual site condition

  • This exclusive Tender system permits maximum flexibility of use, as each pair of modules can be opened and closed independently

  • Sky lights are available in single side or double side telescopic sliding( multi telescopic 2,3,4,5,6,7,8,9 ) suggested to suit actual site condition

  • Bottom rail made up of polished bright bar( aluminium, stainless steel ) which is supported by heavy duty beam

  • Bottom steel with nylon rollers with bearings are used for smooth operation

  • Various residential, commercial & industrial sky light designs available to suit clients choice

  • Quick release disengaging mechanism inside sliding sky lights enables changeover to manual operation in case of power failure

  • Optical beam sensor: Safety device to detect presence of reversal of gate movement

  • It can be integrated with any kind of access controller system i.e. RFID device, Fingerprint and Biometric devices, Remote, card dispenser and Push button etc…

PRODUCT
Motorised Retractable Roof
RETRACTABLE DIMENSION
Width Min./Max. Single Leaf : 600/12000mm
Double Leaf :1200/24000mm
Height Min./Max. 500/3800mm
Larger Dimension on request
Telescopic Width Min./Max. Single Leaf : 600/16000mm
Double Leaf :1200/32000mm
Telescopic Height Min./Max. 1000/4800mm
Larger Dimension on request
Opening Direction Horizontal
Mounting Location Inside/ Outside ( retractable roof )
Mounting Surface Bottom Rail: RCC
RETRACTABLE DESIGN
Pattern Standard Steel Tubular pattern or Customised Fabrication design
Internal vertical member Heavy Duty Vertical and Horizontal Box sections
(or Customized design available on request)
Bottom Rail Polished bright bar( round ) with beam or C-channel support
Dual track bottom rail for large opening gates as per design, ( Aluminium Steel, Galvanised steel, Stainless Steel )
Bottom Rollers Heavy Duty Bottom Nylon Wheel with both side bearings and Wheel cups,  ( Galvanised Steel, Stainless Steel )
Glazing Sheet Solid Compact Polycarbonate Sheet available in varient colours & sizes
Embossed Sheet Solid Embossed Polycarbonate Textured Sheets with Ultra Violet Coated
Multiwall  Sheet Multiwall Polycarbonate Sheets with high quality of Ultra Violet Resistance, Solar Control, Weather Ability
PATTERNS/DESIGNS
Other available gate material Stainless Steel, Aluminium Steel, Galvanised Steel
Sheets GI/Aluminium sheets
Polycarbonate / Acrylic / PVC Sheet/Glass/Wood/WPC Wood/Fundermax panels
Ornamental Designs On Request or as per client or architect design.
Options Available Spikes as per requirement
Any type of Customized Design can be made on request.
FINISH
Surface Finish Standard: Primer Finish
Optional: Enamel Painting/Duco/PU painting/ Powder coating/ Hot deep Galvanising
DETAILS FOR AUTOMATION SYSTEM
Drive Unit Imported & Indian make electromechanical drive having features such as powerful startup & thermal sensors
Single( A.C & D.C )/Three Phase
Emergency Operation Manual release knob
Accessories (Optional)
Operational Accessories
Additional Push Button
Key switch
Remote Control with receiver
Magnetic Loop Detector
Safety Accessories
Safety Photocell
Vertical Safety Edge Sensor
Indicative Accessories
Flashing Light
  • 1

    Courtyard

  • 2

    Terrace Garden

  • 3

    Swimming pool

  • 4

    Backyards

  • 5

    Swimming pool

  • 6

    Hospitals

  • 7

    Villa Residency

  • 8

    Commercial venture

  • 9

    Farm houses

  • 10

    Open air venues

  • 11

    Stadiums or sports arenas

  • 12

    Restaurants
